Beginner guide to OBS - Settings

Tables can't be imported directly. Please insert an image of your table which can be found here.

We are no longer supporting Learnyst LIVE.

Instead, we have integrated Zoom with Learnyst. So, you can conduct LIVE classes on Learnyst without any additional configuration or Zoom license.

Alternatively, you can also embed any other third-party LIVE apps on Learnyst.

If you are a new user, you can ignore this article and instead refer to

How to Conduct Zoom LIVE Classes From Your Academy

Please follow these settings to ensure OBS works seamlessly with Learnyst Live.

Below are the key points you need to be aware of:

Set your OBS base resolution to 1280x720 & video output resolution to 852X480 (if you have a higher upload speed, increase the resolution)

Set your OBS base resolution to 1280x720 & video output resolution to 852X480 (if you have a higher upload speed, increase the resolution)

Your internet upload speed must be >2MBPS to do seamless live streaming. (check your speed here)

Your internet upload speed must be >2MBPS to do seamless live streaming. (check your speed here)

For live streaming:

With Web-cam: Use 30 FPS & resolution: 1280x720 & internet speed >5mbps
With screen-share: Use 5FPS & resolution: 960x540 & internet speed>2mbps

With Web-cam: Use 30 FPS & resolution: 1280x720 & internet speed >5mbps

With screen-share: Use 5FPS & resolution: 960x540 & internet speed>2mbps

Settings to setup OBS with Learnyst Live: Read

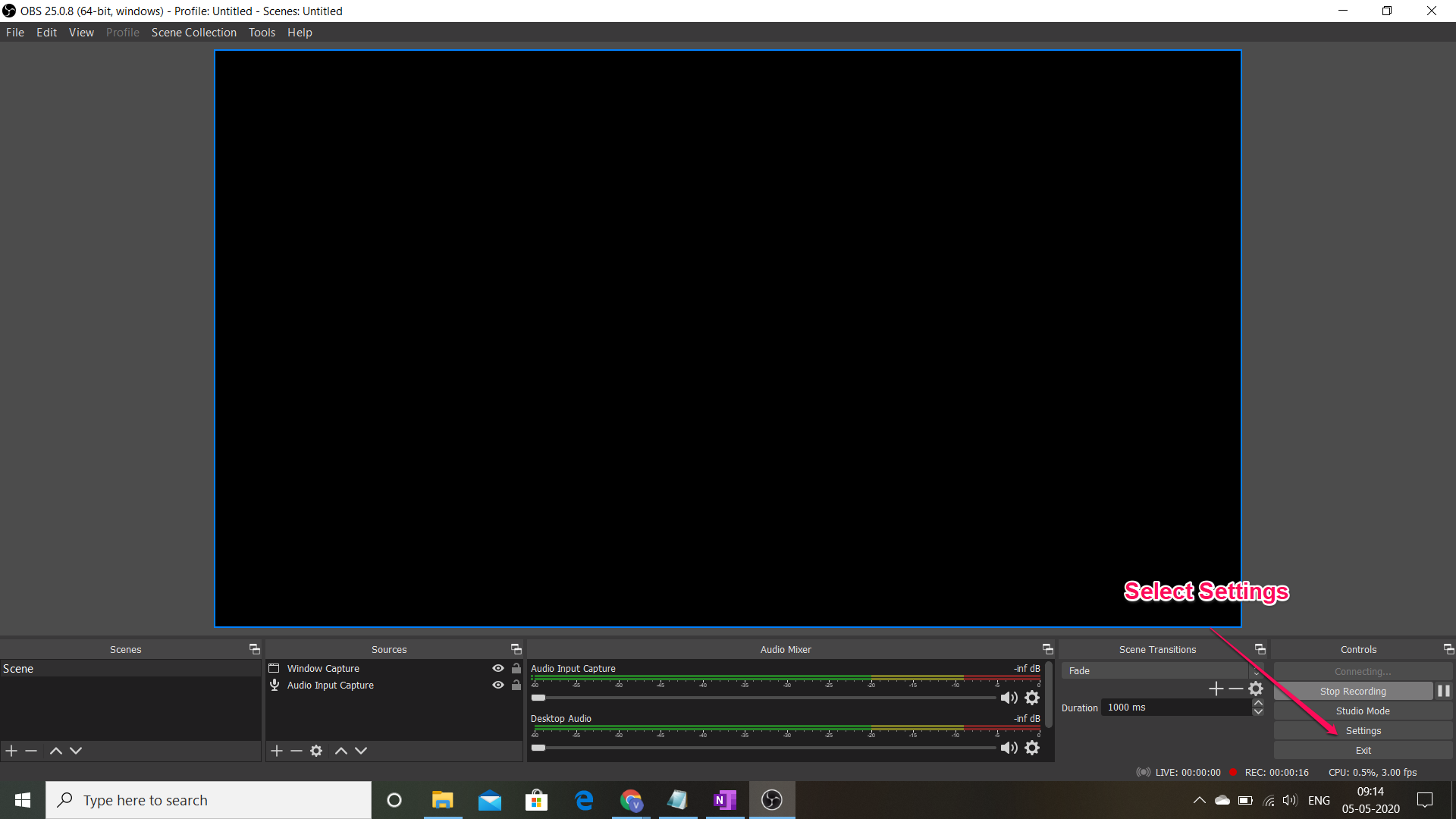

To set up OBS seamlessly with Leanyst Live, we recommend you to do the below changes in the settings menu. Click settings & open it.

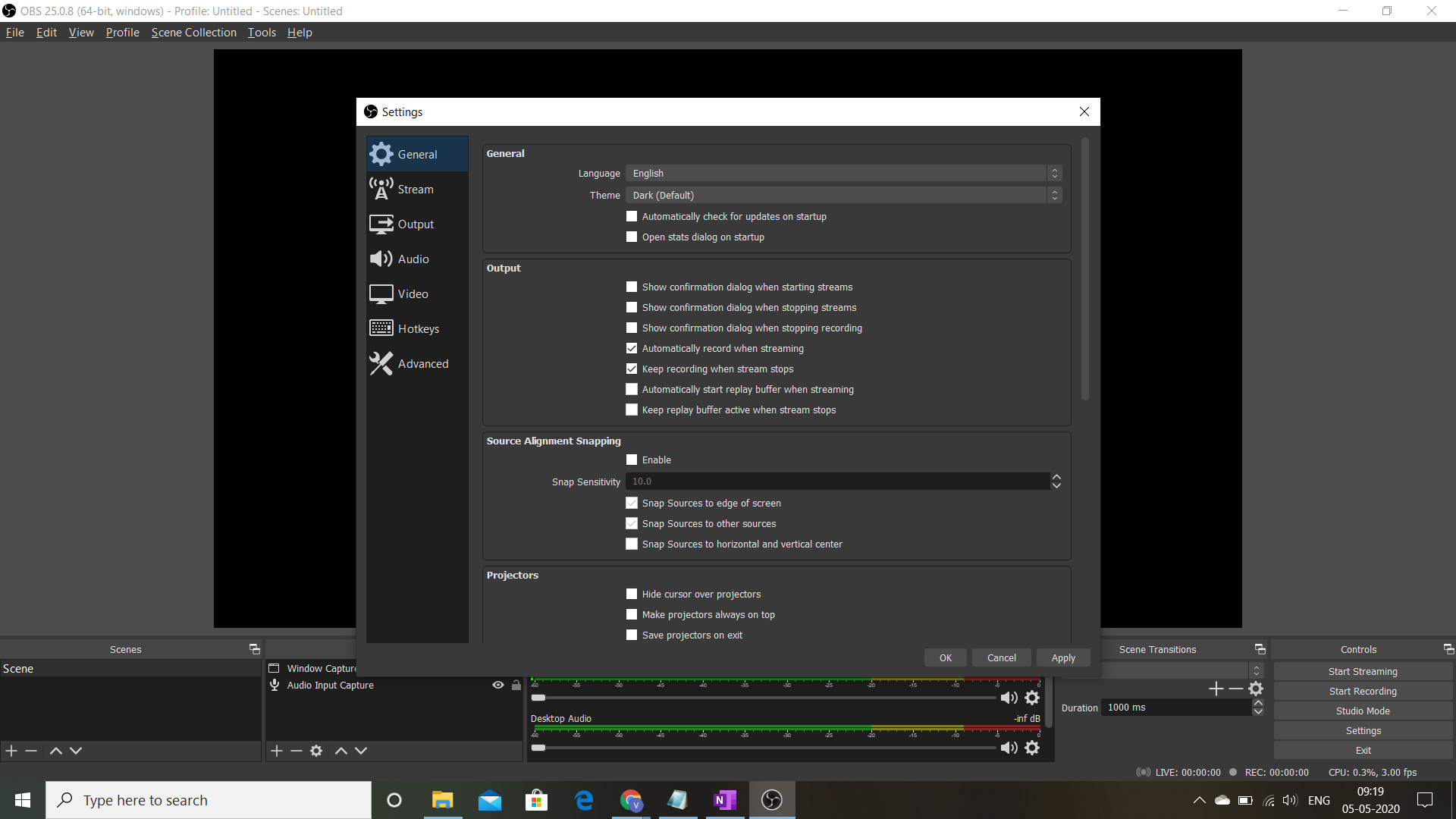

General Tab:

No changes. Leave default

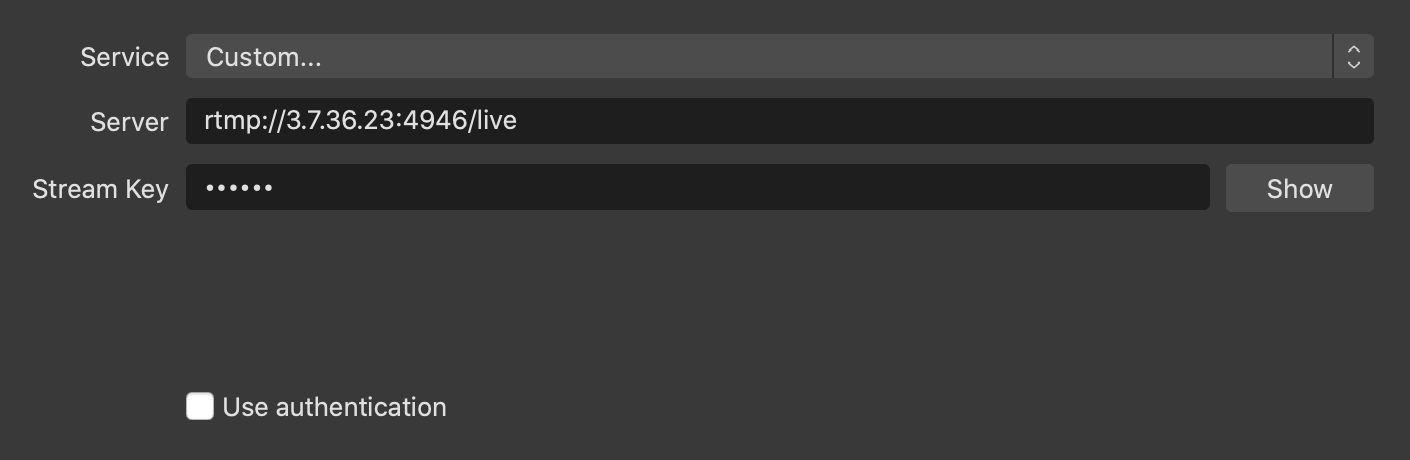

Stream Tab:

Copy the learnyst server & stream keys from the admin dashboard when you start your live classes.

Output Tab

Change Output mode to advanced
In Streaming Tab select encoder. Encoders are different for Windows and Mac PC. If a hardware encoder is available, select hardware encoder(NVENC/H264 encoder for windows and Apple VT H264 hardware encoder for mac).
Else select x264 encoder

Change Output mode to advanced

In Streaming Tab select encoder. Encoders are different for Windows and Mac PC. If a hardware encoder is available, select hardware encoder(NVENC/H264 encoder for windows and Apple VT H264 hardware encoder for mac).

Else select x264 encoder

Un-check “Enforce streaming service encoder settings.”
Enable “Rescale Output” and select “960 x 540”

Un-check “Enforce streaming service encoder settings.”

Enable “Rescale Output” and select “960 x 540”

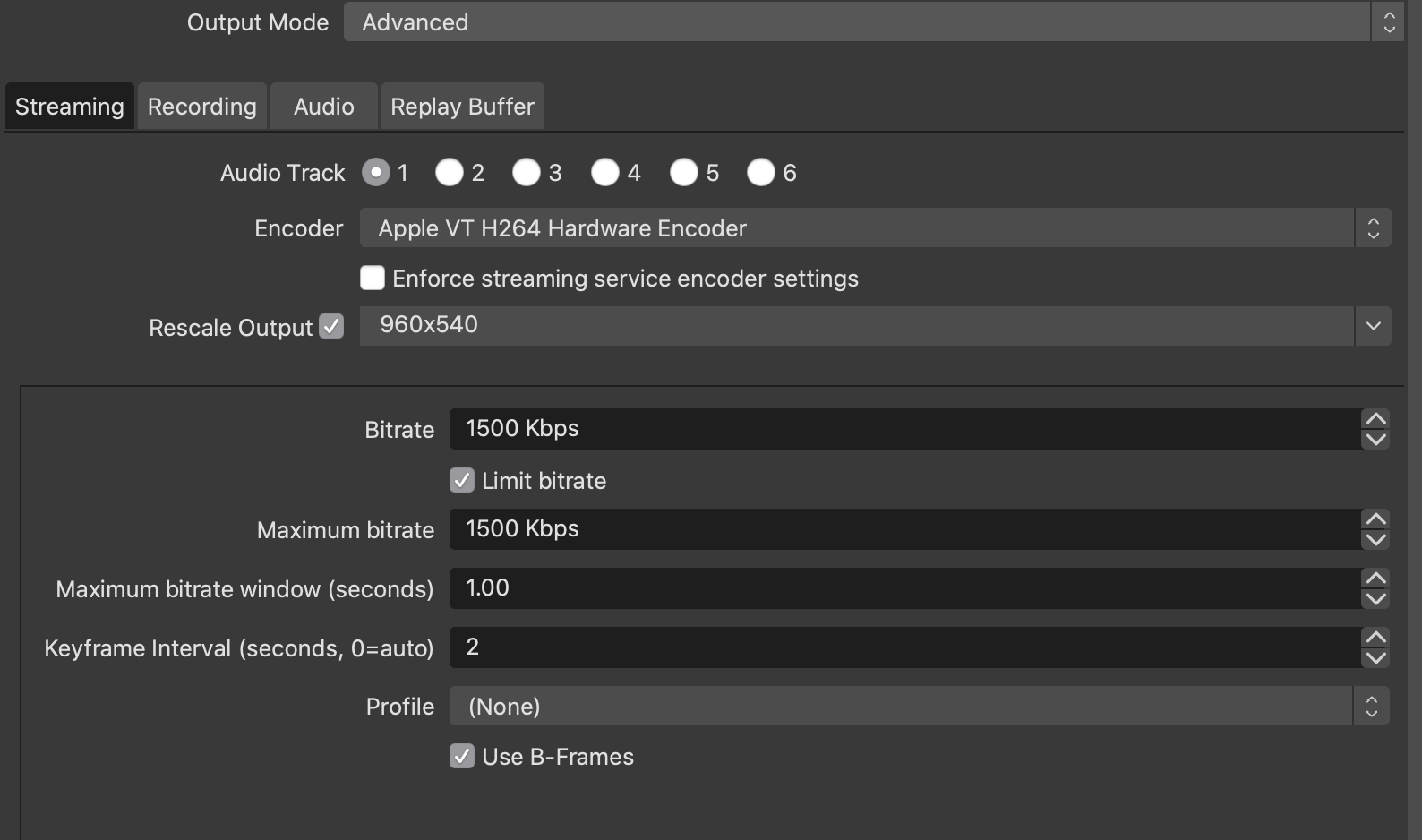

For the Apple Hardware encoder below are the settings:

Change bitrate to 1500 kbps. If you select a higher resolution then you can increase this. But make sure that you have the very good upload bandwidth
Limit maximum bitrate to 1500 kbps
Change maximum bitrate window to 1 sec
Change keyframe interval to 2
Select use B-frames

Change bitrate to 1500 kbps. If you select a higher resolution then you can increase this. But make sure that you have the very good upload bandwidth

Limit maximum bitrate to 1500 kbps

Change maximum bitrate window to 1 sec

Change keyframe interval to 2

Select use B-frames

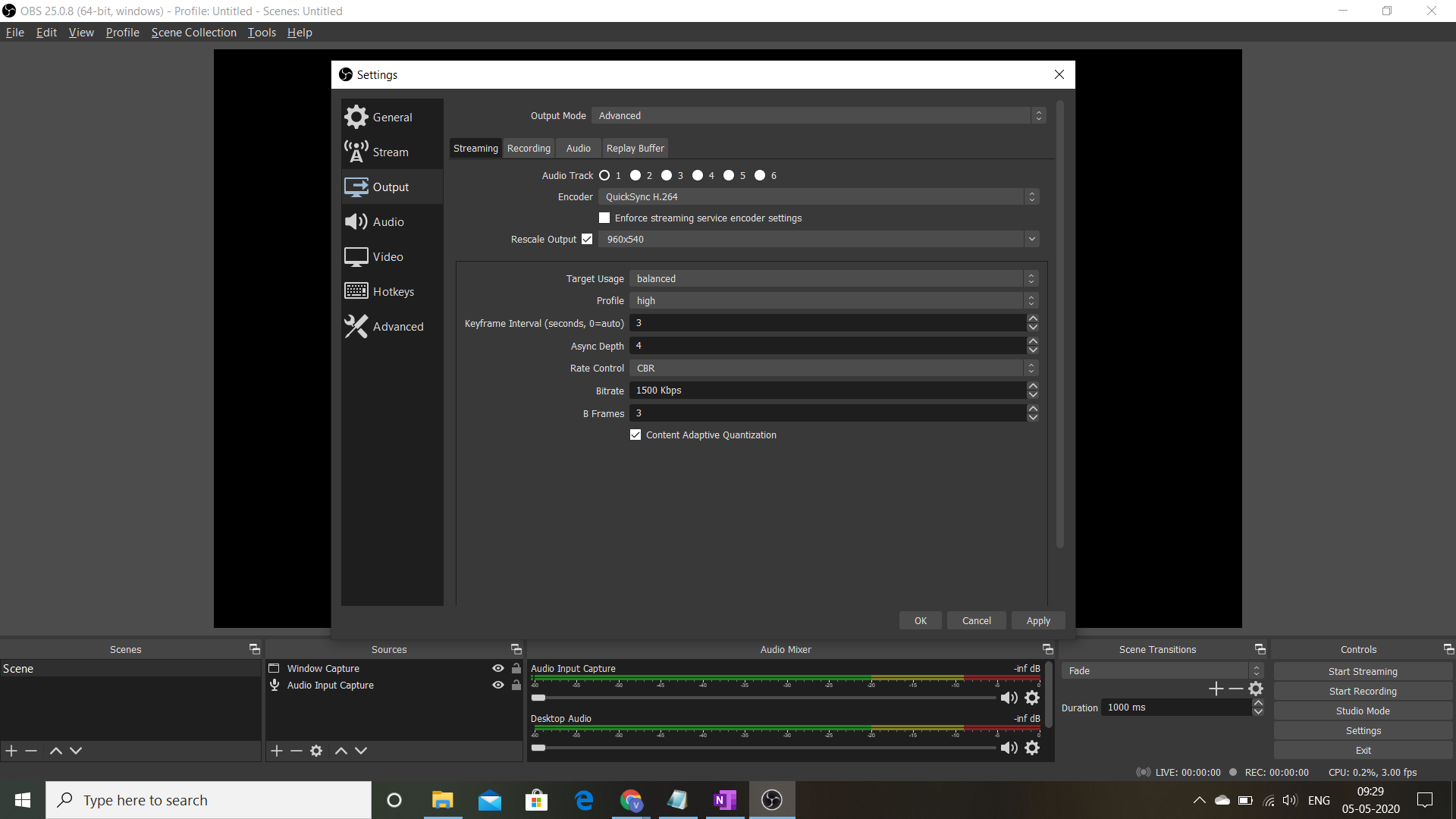

For Windows Hardware encoder below are the settings:

Change bit-rate to 1500 kbps. If you select a higher resolution, then you can increase this. But make sure that you have very good upload bandwidth >2mbps
Limit maximum bitrate to 1500 kbps
Others Keep it default.

Change bit-rate to 1500 kbps. If you select a higher resolution, then you can increase this. But make sure that you have very good upload bandwidth >2mbps

Limit maximum bitrate to 1500 kbps

Others Keep it default.

Pro tip:
Set your video bitrate to 1500kbps only if your internet upload speed is >2MBPS
The general rule is your video bitrate must be <your internet upload speed
You can check your internet speed at fast.com

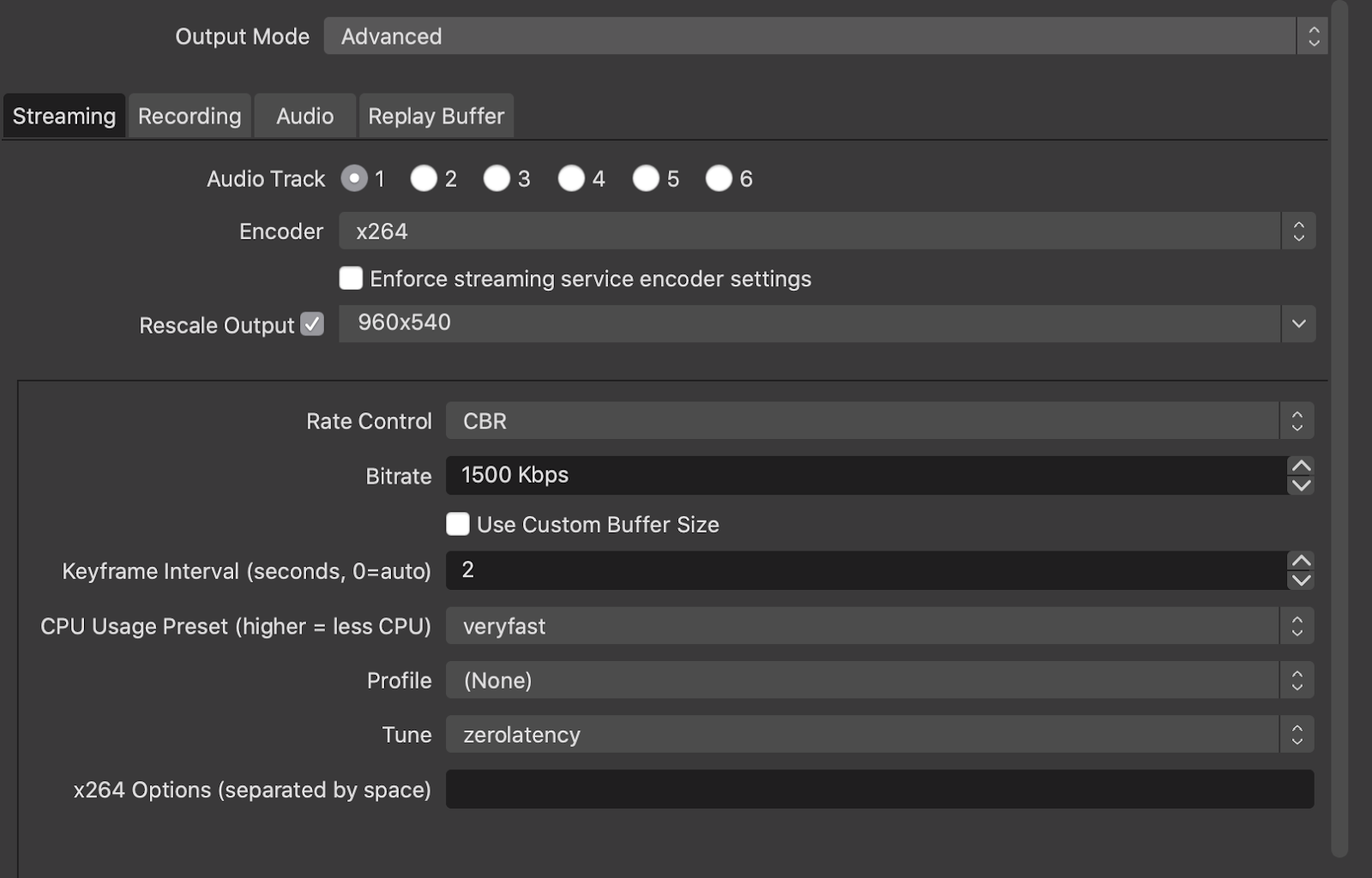

For the x264 encoder below are the settings

Rate control should be CBR
Limit bitrate to 1500 kbps
Change keyframe interval to 2
Change CPU Usage preset to “veryfast”
Set tune to “zerolatency”

Rate control should be CBR

Limit bitrate to 1500 kbps

Change keyframe interval to 2

Change CPU Usage preset to “veryfast”

Set tune to “zerolatency”

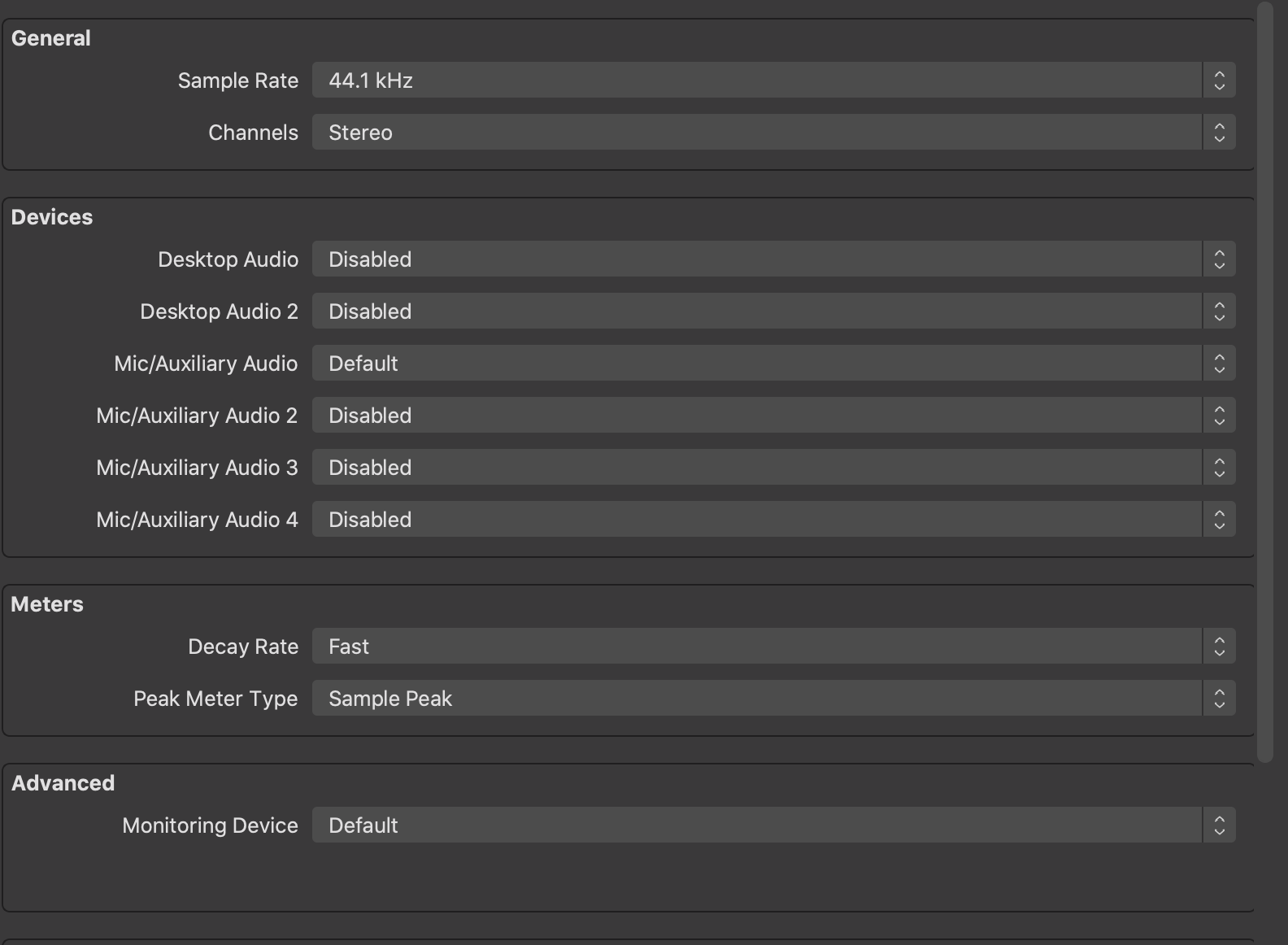

Audio Tab:

Set sample rate to 44.1 kHZ. Other settings leave default

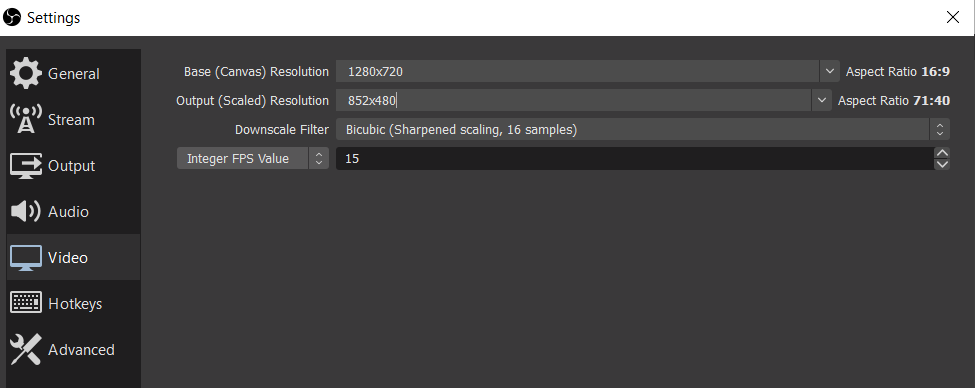

Video Tab:

Set base Resolution to 1280x720
Set Output Resolution to 852x480. If you increase resolution you need to increase bandwidth and also make sure that you have very good upload bandwidth
Set downscale filter to Bicubic
Change FPS as below.
FPS=5 or 10 : For Live classes which are done using screen sharing 5-10 FPS is enough. This will have smooth streaming for students also and also the bandwidth requirements will be less.
FPS=24 : For Live classes which are done using webcam or using external camera. If FPS is increased we need to set the bandwidth accordingly and also make sure that you have very good upload bandwidth speed.

Set base Resolution to 1280x720

Set Output Resolution to 852x480. If you increase resolution you need to increase bandwidth and also make sure that you have very good upload bandwidth

Set downscale filter to Bicubic

Change FPS as below.

FPS=5 or 10 : For Live classes which are done using screen sharing 5-10 FPS is enough. This will have smooth streaming for students also and also the bandwidth requirements will be less.

FPS=24 : For Live classes which are done using webcam or using external camera. If FPS is increased we need to set the bandwidth accordingly and also make sure that you have very good upload bandwidth speed.

Note-1: For FPS 24/30 and resolution of 1280*720, 5-7 Mbps upload bandwidth is required

Note-2: For FPS 5/10 and resolution of 960*540, 2-3 Mbps upload bandwidth is required

With these steps, you are now ready to stream your video.

Watch detailed steps in this video from 5.35s to 7:20s to stream your video on OBS.

You can also check the support article: How to take live classes online for details.
